基于Tomcat调试Android http/https

配置Tomcat
1. 下载
2. 启动
3. 停止
创建服务器密钥库(keystore)
1. 创建keystore
2. 查看keystore
开启https
1. 开启8443端口
2. 配置keystore路径和密码
绑定域名
导出客户端证书
1. 导出证书
2. 查看证书
Android App测试http请求
1. 编写测试json
2. 发起http请求
Android App测试https请求

配置Tomcat

下载

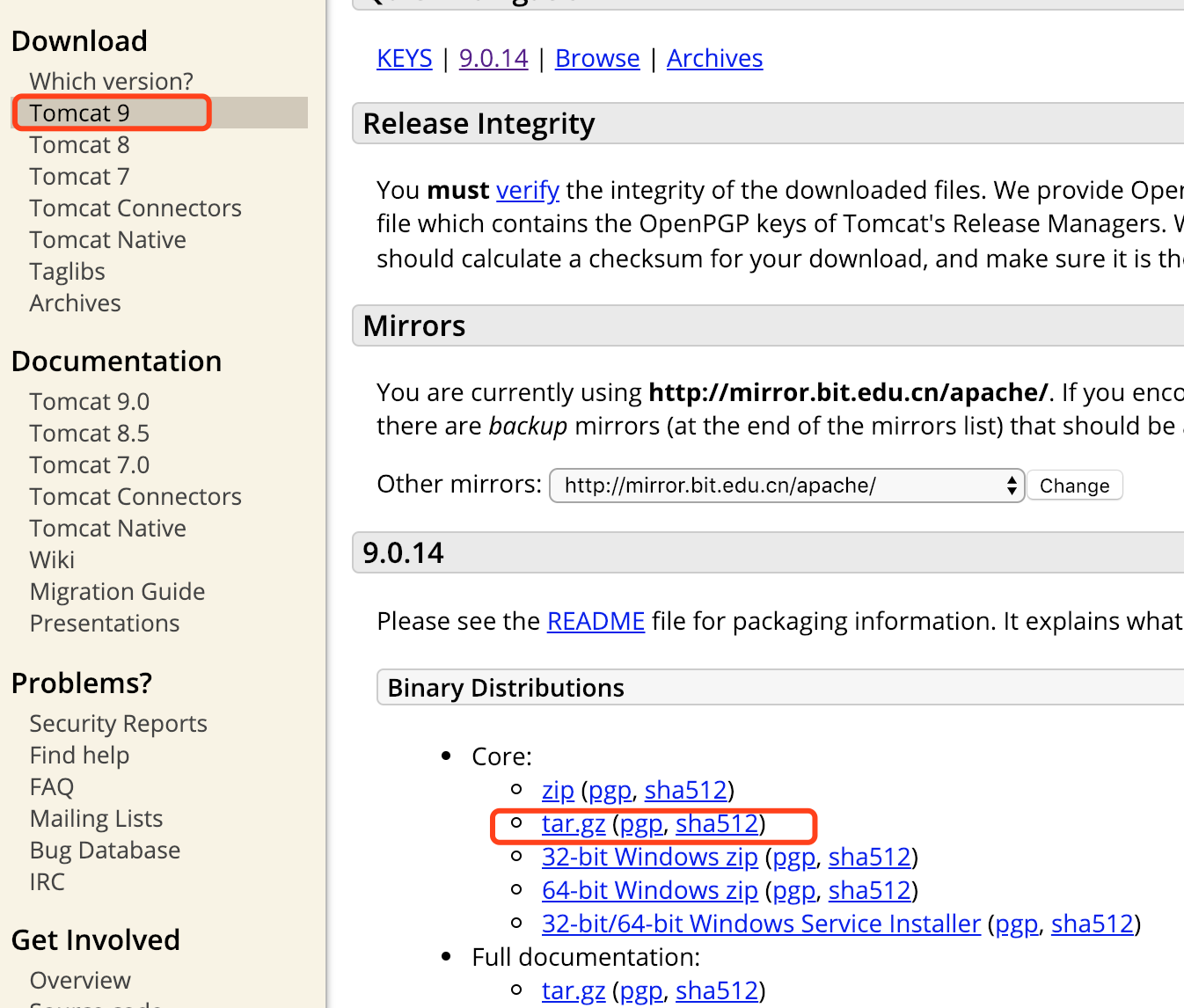

进入tomcat官网：http://tomcat.apache.org/，找到下载链接，点击下载，下载完成双击解压即可。

启动

进入解压目录的bin文件夹。

$ cd /Users/lixiang/Mwp/Github/mwping/download/tomcat/apache-tomcat-9.0.14/bin/
$ sudo sh startup.sh
Password:
Using CATALINA_BASE:   /Users/lixiang/Mwp/Github/mwping/download/tomcat/apache-tomcat-9.0.14
Using CATALINA_HOME:   /Users/lixiang/Mwp/Github/mwping/download/tomcat/apache-tomcat-9.0.14
Using CATALINA_TMPDIR: /Users/lixiang/Mwp/Github/mwping/download/tomcat/apache-tomcat-9.0.14/temp
Using JRE_HOME:        /Library/Java/JavaVirtualMachines/jdk1.8.0_73.jdk/Contents/Home
Using CLASSPATH:       /Users/lixiang/Mwp/Github/mwping/download/tomcat/apache-tomcat-9.0.14/bin/bootstrap.jar:/Users/lixiang/Mwp/Github/mwping/download/tomcat/apache-tomcat-9.0.14/bin/tomcat-juli.jar
Tomcat started.

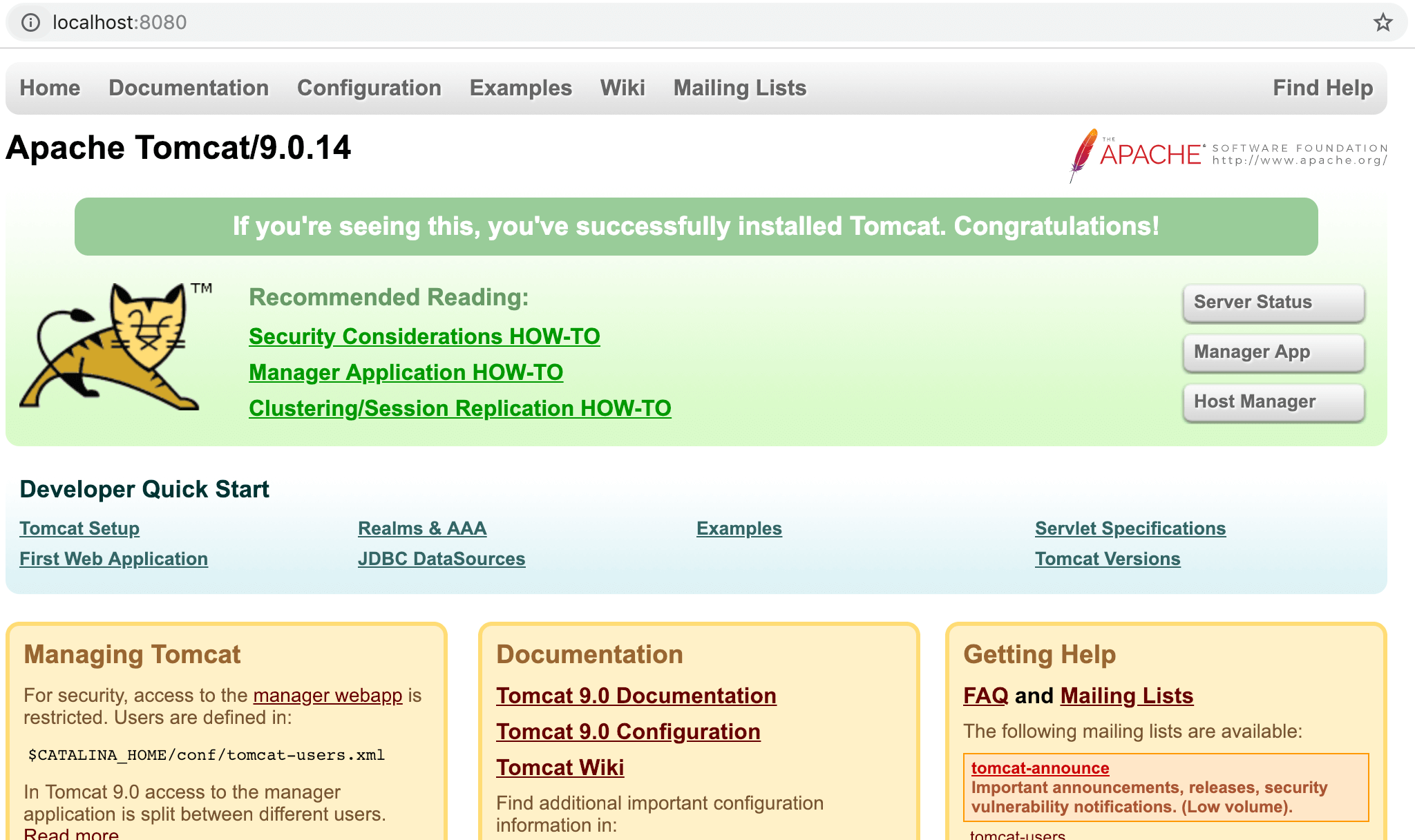

浏览器正常打开http://localhost:8080/，则说明配置成功：

停止

$ sudo sh shutdown.sh

创建服务器密钥库(keystore)

创建keystore

进入jdk安装路径的bin目录

Last login: Mon Dec 24 23:58:32 on ttys000
localhost:~ lixiang$ /usr/libexec/java_home -V
Matching Java Virtual Machines (1):
    1.8.0_73, x86_64: "Java SE 8" /Library/Java/JavaVirtualMachines/jdk1.8.0_73.jdk/Contents/Home

/Library/Java/JavaVirtualMachines/jdk1.8.0_73.jdk/Contents/Home
$ cd /Library/Java/JavaVirtualMachines/jdk1.8.0_73.jdk/Contents/Home/bin/

生成keystore

$ keytool -genkeypair -alias mwpingart01 -keyalg RSA -keystore /Users/lixiang/Mwp/Github/mwping/download/tomcat/apache-tomcat-9.0.14/conf/keystore/mwpingart.keystore
输入密钥库口令:
再次输入新口令:
您的名字与姓氏是什么?
  [Unknown]:  mwping.art
您的组织单位名称是什么?
  [Unknown]:  mwping.art
您的组织名称是什么?
  [Unknown]:  mwping.art
您所在的城市或区域名称是什么?
  [Unknown]:  hz
您所在的省/市/自治区名称是什么?
  [Unknown]:  zj
该单位的双字母国家/地区代码是什么?
  [Unknown]:  ZH
CN=mwping.art, OU=mwping.art, O=mwping.art, L=hz, ST=zj, C=ZH是否正确?
  [否]:  y

输入 <mwpingart01> 的密钥口令
  (如果和密钥库口令相同, 按回车):

可以使用同样的方法，在mwpingart.keystore添加一个新的密钥对(alias=mwpingart02)。

查看keystore

$ keytool -list -keystore /Users/lixiang/Mwp/Github/mwping/download/tomcat/apache-tomcat-9.0.14/conf/keystore/mwpingart.keystore
输入密钥库口令:

密钥库类型: JKS
密钥库提供方: SUN

您的密钥库包含 2 个条目

mwpingart02, 2018-12-25, PrivateKeyEntry,
证书指纹 (SHA1): CF:8E:9F:5D:E5:01:C1:C2:89:2A:94:F4:CE:FB:6B:A0:6B:74:14:58
mwpingart01, 2018-12-25, PrivateKeyEntry,
证书指纹 (SHA1): 7A:04:F7:BE:20:1B:D2:8E:A7:E8:8C:37:50:93:A1:A0:2F:6F:48:BE

开启https

开启8443端口

找到apache-tomcat-9.0.14/conf/server.xml文件，修改代码片段：

    <!--
    <Connector port="8443" protocol="org.apache.coyote.http11.Http11NioProtocol"
               maxThreads="150" SSLEnabled="true">
        <SSLHostConfig>
            <Certificate certificateKeystoreFile="conf/localhost-rsa.jks"
                         type="RSA" />
        </SSLHostConfig>
    </Connector>
    -->

改成

    <Connector port="8443" protocol="org.apache.coyote.http11.Http11NioProtocol"
               maxThreads="150" SSLEnabled="true">
<!--         <SSLHostConfig>
            <Certificate certificateKeystoreFile="conf/localhost-rsa.jks"
                         type="RSA" />
        </SSLHostConfig> -->
    </Connector>

配置keystore路径和密码

继续修改上面的代码片段，添加keystoreFile、keystorePass配置，最终此片段代码如下：

    <Connector port="8443" protocol="org.apache.coyote.http11.Http11NioProtocol"
               maxThreads="150" SSLEnabled="true"
               keystoreFile="conf/keystore/mwpingart.keystore"
               keystorePass="mwp123">
<!--         <SSLHostConfig>
            <Certificate certificateKeystoreFile="conf/localhost-rsa.jks"
                         type="RSA" />
        </SSLHostConfig> -->
    </Connector>

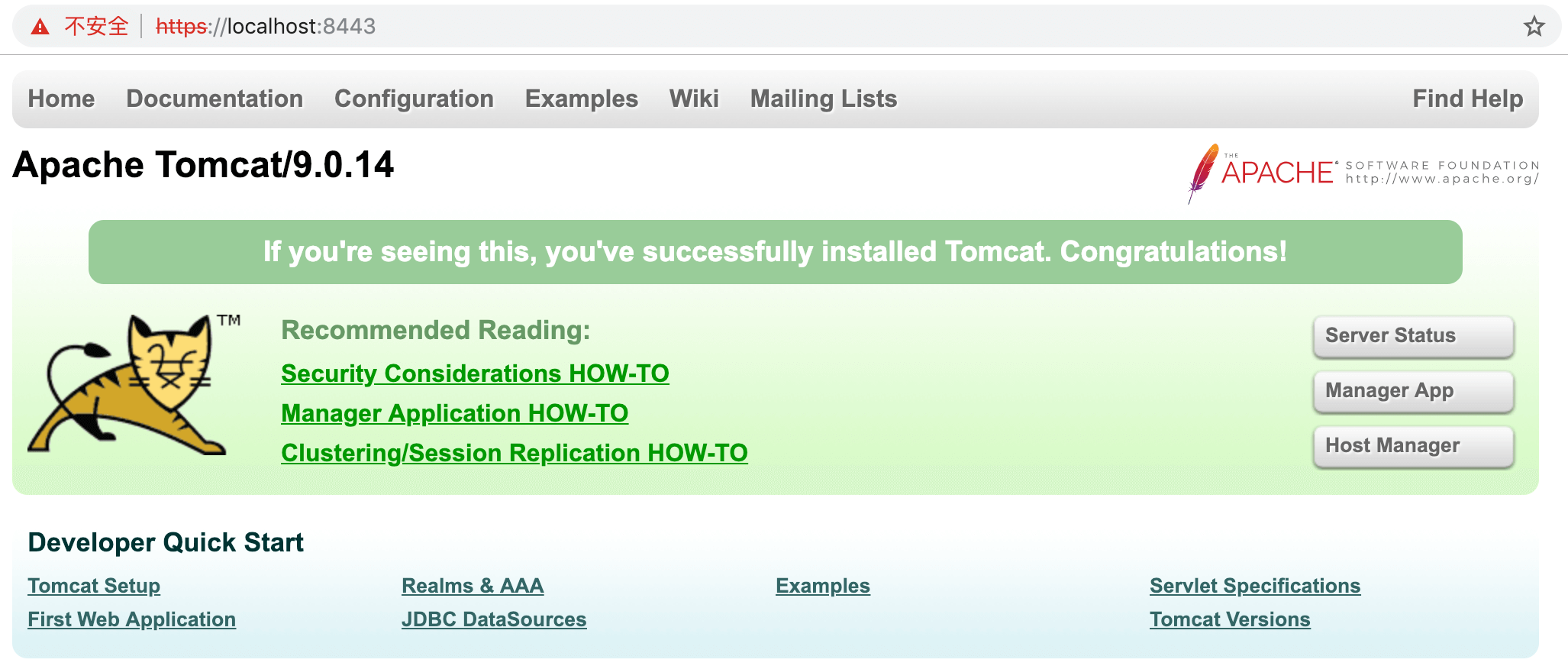

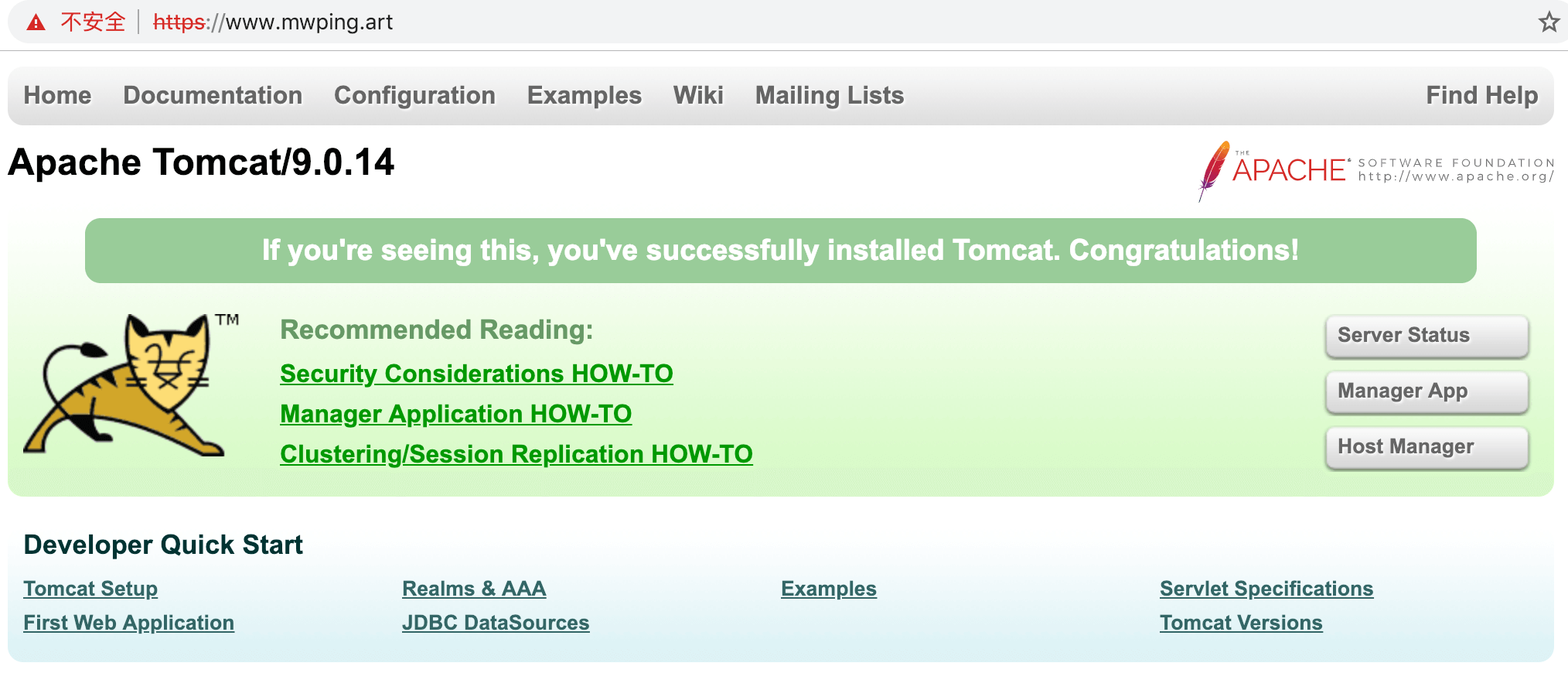

打开https://localhost:8443/验证配置是否生效。下图说明https配置成功。

绑定域名

申请域名

登录阿里云申请注册域名：https://www.aliyun.com/

添加域名解析

查询本机ip，这里查到的是192.168.0.105：

$ ifconfig en0
en0: flags=8863<UP,BROADCAST,SMART,RUNNING,SIMPLEX,MULTICAST> mtu 1500
  ether ac:bc:32:d2:68:c7
  inet6 fe80::10a6:75b5:b221:abb6%en0 prefixlen 64 secured scopeid 0x5
  inet 192.168.0.105 netmask 0xffffff00 broadcast 192.168.0.255
  nd6 options=201<PERFORMNUD,DAD>
  media: autoselect
  status: active

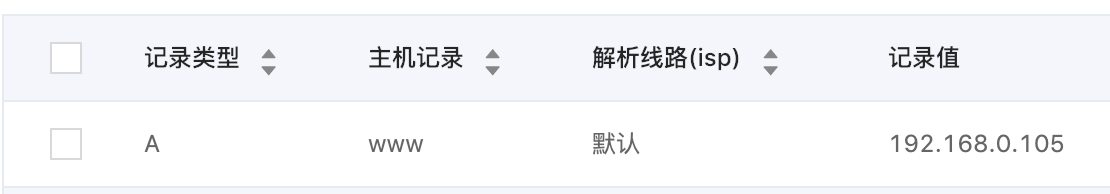

阿里云域名管理-解析，添加刚刚查到的ipv4地址(192.168.0.105)：

验证域名解析是否生效，下面能ping通说明已生效：

$ ping www.mwping.art
PING www.mwping.art (192.168.0.105): 56 data bytes
64 bytes from 192.168.0.105: icmp_seq=0 ttl=64 time=0.087 ms
64 bytes from 192.168.0.105: icmp_seq=1 ttl=64 time=0.100 ms

配置tomcat http端口

找到apache-tomcat-9.0.14/conf/server.xml文件，port改成"80"，redirectPort改成"443"：

    <Connector port="8080" protocol="HTTP/1.1"
               connectionTimeout="20000"
               redirectPort="8443" />

改成

    <Connector port="80" protocol="HTTP/1.1"
               connectionTimeout="20000"
               redirectPort="443" />

配置tomcat https端口

此处的8443改成443：

    <Connector port="8443" protocol="org.apache.coyote.http11.Http11NioProtocol"
               maxThreads="150" SSLEnabled="true"
               keystoreFile="conf/keystore/mwpingart.keystore"
               keystorePass="mwp123">
<!--         <SSLHostConfig>
            <Certificate certificateKeystoreFile="conf/localhost-rsa.jks"
                         type="RSA" />
        </SSLHostConfig> -->
    </Connector>

改成

    <Connector port="443" protocol="org.apache.coyote.http11.Http11NioProtocol"
               maxThreads="150" SSLEnabled="true"
               keystoreFile="conf/keystore/mwpingart.keystore"
               keystorePass="mwp123">
<!--         <SSLHostConfig>
            <Certificate certificateKeystoreFile="conf/localhost-rsa.jks"
                         type="RSA" />
        </SSLHostConfig> -->
    </Connector>

配置tomcat域名

此处的localhost改成www.mwping.art

<Engine name="Catalina" defaultHost="localhost">

改成：

<Engine name="Catalina" defaultHost="www.mwping.art">

webapps的域名也需要修改：

<Host name="localhost"  appBase="webapps"
            unpackWARs="true" autoDeploy="true">

改成

<Host name="www.mwping.art"  appBase="webapps"
            unpackWARs="true" autoDeploy="true">

重启tomcat，打开下面的网址，验证域名是否生效：

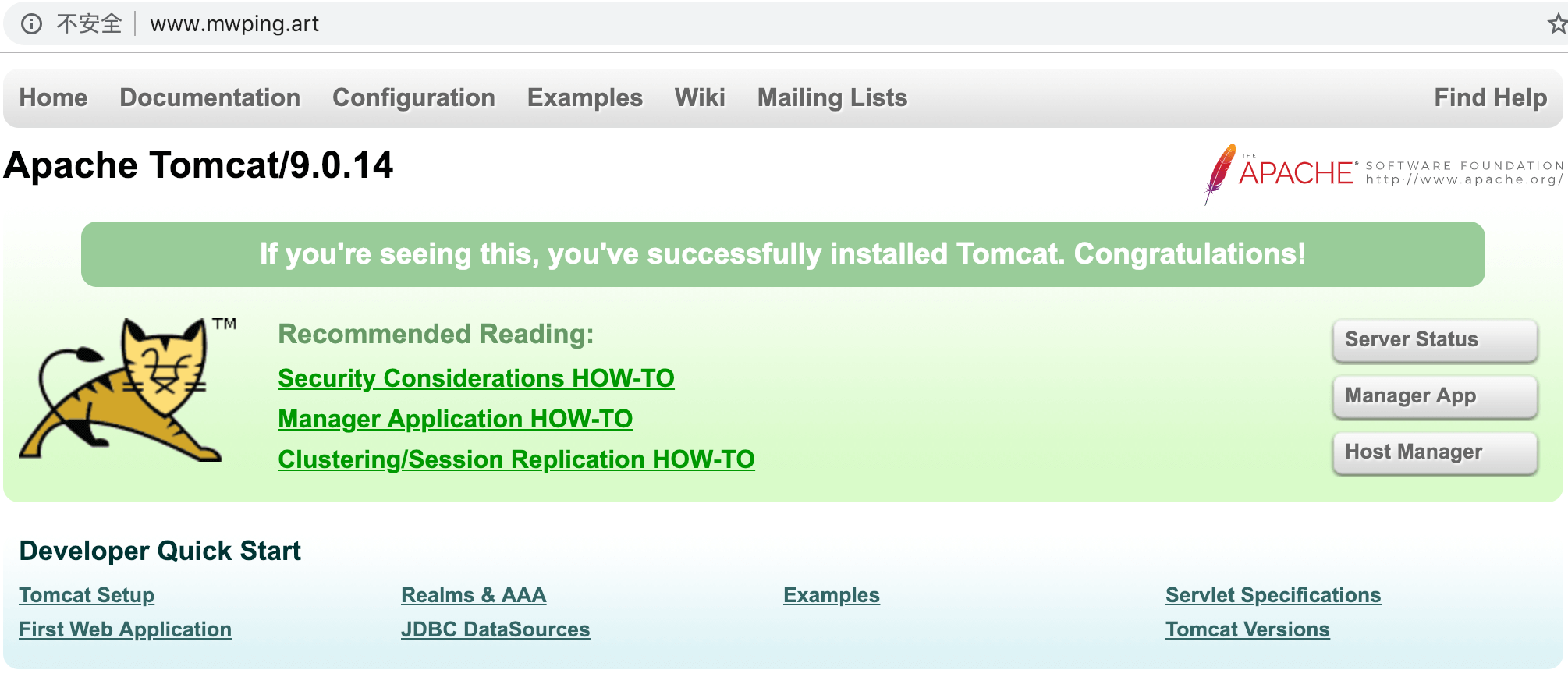

下图说明域名绑定已生效：

导出客户端证书

导出证书

由于之前生成了mwpingart01、mwpingart02两个证书，所以可以导出两份：

$ keytool -export -alias mwpingart01 -file /Users/lixiang/Mwp/Github/mwping/download/tomcat/apache-tomcat-9.0.14/conf/keystore/mwpingart01 -keystore /Users/lixiang/Mwp/Github/mwping/download/tomcat/apache-tomcat-9.0.14/conf/keystore/mwpingart.keystore
输入密钥库口令:
存储在文件 </Users/lixiang/Mwp/Github/mwping/download/tomcat/apache-tomcat-9.0.14/conf/keystore/mwpingart01> 中的证书

查看证书

$ keytool -printcert -file /Users/lixiang/Mwp/Github/mwping/download/tomcat/apache-tomcat-9.0.14/conf/keystore/mwpingart01
所有者: CN=mwping.art, OU=mwping.art, O=mwping.art, L=hz, ST=zj, C=ZH
发布者: CN=mwping.art, OU=mwping.art, O=mwping.art, L=hz, ST=zj, C=ZH
序列号: 3e440104
有效期开始日期: Tue Dec 25 00:04:46 CST 2018, 截止日期: Mon Mar 25 00:04:46 CST 2019
证书指纹:
   MD5: 3E:29:F9:5A:84:9D:83:7B:3C:03:00:49:9D:08:47:DD
   SHA1: 7A:04:F7:BE:20:1B:D2:8E:A7:E8:8C:37:50:93:A1:A0:2F:6F:48:BE
   SHA256: CA:D2:02:4F:EA:A7:35:94:BC:41:81:19:F8:65:33:C9:18:D9:89:10:AE:8E:F7:76:4A:63:35:86:8E:D2:2F:F9
   签名算法名称: SHA256withRSA
   版本: 3

扩展:

#1: ObjectId: 2.5.29.14 Criticality=false
SubjectKeyIdentifier [
KeyIdentifier [
0000: 93 33 CF 48 86 0C C4 ED   78 30 8C A2 70 A5 B0 BB  .3.H....x0..p...
0010: 60 1D 2B D7                                        `.+.
]
]

Android App测试http请求

编写测试json

{
  "title": "hello",
  "content": "Welcome to tomcat!"
}

将json文件保存为：apache-tomcat-9.0.14/webapps/test/hello

发起http请求

首先确保Android手机和Tomcat部署的电脑连接到同一个WiFi。网络请求代码很简单(参考：https://developer.android.com/training/articles/security-ssl)：

    URL url = new URL("http://www.mwping.art/test/hello");
    URLConnection urlConnection = url.openConnection();
    InputStream in = urlConnection.getInputStream();
    streamToString(in);

为了方便测试，将InputStream转换成String：

    private static String streamToString(InputStream inputStream) throws IOException {
        ByteArrayOutputStream result = new ByteArrayOutputStream();
        byte[] buffer = new byte[1024];
        int length;
        while ((length = inputStream.read(buffer)) != -1) {
            result.write(buffer, 0, length);
        }
        String str = result.toString(StandardCharsets.UTF_8.name());
        return str;
    }

Android App测试https请求

直接发起https请求(会失败)

    URL url = new URL("https://www.mwping.art/test/hello");
    URLConnection urlConnection = url.openConnection();
    InputStream in = urlConnection.getInputStream();
    streamToString(in);

不出意外的话，这段代码会抛出异常：

javax.net.ssl.SSLHandshakeException: java.security.cert.CertPathValidatorException: Trust anchor for certification path not found.
        at com.android.org.conscrypt.OpenSSLSocketImpl.startHandshake(OpenSSLSocketImpl.java:355)
        at com.android.okhttp.internal.io.RealConnection.connectTls(RealConnection.java:192)
        at com.android.okhttp.internal.io.RealConnection.connectSocket(RealConnection.java:149)
        at com.android.okhttp.internal.io.RealConnection.connect(RealConnection.java:112)

信任自签署证书

上面抛出异常是因为服务器证书是自签署的(即使用keytool生成)，而不是由证书颁发机构(Certificate Authorities，简称CA)发放的，解决此异常的方法如下(详见https://developer.android.com/training/articles/security-ssl)：

把apache-tomcat-9.0.14/conf/keystore目录下的mwpingart01、mwpingart02移入Android项目res/raw文件夹下。

设置SSLSocketFactory：

 public static SSLContext createSSLContext(InputStream in, String alias) throws Exception {
     // Load CAs from an InputStream
     // (could be from a resource or ByteArrayInputStream or ...)
     CertificateFactory cf = CertificateFactory.getInstance("X.509");
     InputStream caInput = new BufferedInputStream(in);
     Certificate ca;
     try {
         ca = cf.generateCertificate(caInput);
     } finally {
         caInput.close();
     }
     // Create a KeyStore containing our trusted CAs
     String keyStoreType = KeyStore.getDefaultType();
     KeyStore keyStore = KeyStore.getInstance(keyStoreType);
     keyStore.load(null, null);
     keyStore.setCertificateEntry(alias, ca);

     // Create a TrustManager that trusts the CAs in our KeyStore
     String tmfAlgorithm = TrustManagerFactory.getDefaultAlgorithm();
     TrustManagerFactory tmf = TrustManagerFactory.getInstance(tmfAlgorithm);
     tmf.init(keyStore);

     // Create an SSLContext that uses our TrustManager
     SSLContext context = SSLContext.getInstance("TLS");
     context.init(null, tmf.getTrustManagers(), null);
     return context;
 }

改写网络请求代码：

 SSLContext sslContext = createSSLContext(getResources()
         .openRawResource(R.raw.mwpingart02), "mwpingart02");
 URL url = new URL("https://www.mwping.art/test/hello");
 HttpsURLConnection urlConnection = (HttpsURLConnection) url.openConnection();
                 urlConnection.setSSLSocketFactory(sslContext.getSocketFactory());
 // Create an HostnameVerifier that hardwires the expected hostname.
 // Note that is different than the URL's hostname:
 // example.com versus example.org
 HostnameVerifier hostnameVerifier = new HostnameVerifier() {
     @Override
     public boolean verify(String hostname, SSLSession session) {
         HostnameVerifier hv =
                 HttpsURLConnection.getDefaultHostnameVerifier();
         return hv.verify("mwping.art", session);
     }
 };
 urlConnection.setHostnameVerifier(hostnameVerifier);
 InputStream in = urlConnection.getInputStream();
 streamToString(in);

hostnameVerifier也需要添加，否则会抛出新的异常：

javax.net.ssl.SSLPeerUnverifiedException: Hostname www.mwping.art not verified:
     certificate: sha1/E4MnuCIFZweIl+S/T/ptKvl1Znw=
     DN: CN=mwping.art,OU=mwping.art,O=mwping.art,L=hz,ST=zj,C=ZH
     subjectAltNames: []

注意：整个过程mwpingart01证书没有起到任何作用，引入它只是为了验证它无效。如果上面的代码用mwpingart01替换mwpingart02，网络请求会失败，这是因为服务器keystore以最新的为准。

解决Hostname not verified问题

上面提到，如果不加hostnameVerifier会抛异常，究其原因是服务器配置的keystore的"您的名字与姓氏"这一项有问题，原值"mwping.art"，改成"www.mwping.art"即可。

1.生成新密钥对(重点在于www.mwping.art)：

$ keytool -genkeypair -alias wwwmwpingart01 -keyalg RSA -keystore /Users/lixiang/Mwp/Github/mwping/download/tomcat/apache-tomcat-9.0.14/conf/keystore/mwpingart.keystore
输入密钥库口令:
您的名字与姓氏是什么?
  [Unknown]:  www.mwping.art
您的组织单位名称是什么?
  [Unknown]:  mwp
您的组织名称是什么?
  [Unknown]:  mwp
您所在的城市或区域名称是什么?
  [Unknown]:  hz
您所在的省/市/自治区名称是什么?
  [Unknown]:  zj
该单位的双字母国家/地区代码是什么?
  [Unknown]:  ZH
CN=www.mwping.art, OU=mwp, O=mwp, L=hz, ST=zj, C=ZH是否正确?
  [否]:  y

输入 <wwwmwpingart01> 的密钥口令
  (如果和密钥库口令相同, 按回车):

2.导出证书：

$ keytool -export -alias wwwmwpingart01 -file /Users/lixiang/Mwp/Github/mwping/download/tomcat/apache-tomcat-9.0.14/conf/keystore/wwwmwpingart01 -keystore /Users/lixiang/Mwp/Github/mwping/download/tomcat/apache-tomcat-9.0.14/conf/keystore/mwpingart.keystore
输入密钥库口令:
存储在文件 </Users/lixiang/Mwp/Github/mwping/download/tomcat/apache-tomcat-9.0.14/conf/keystore/wwwmwpingart01> 中的证书

3.查看密钥库条目：

$ keytool -list -keystore /Users/lixiang/Mwp/Github/mwping/download/tomcat/apache-tomcat-9.0.14/conf/keystore/mwpingart.keystore
输入密钥库口令:

密钥库类型: JKS
密钥库提供方: SUN

您的密钥库包含 3 个条目

mwpingart02, 2018-12-25, PrivateKeyEntry,
证书指纹 (SHA1): CF:8E:9F:5D:E5:01:C1:C2:89:2A:94:F4:CE:FB:6B:A0:6B:74:14:58
mwpingart01, 2018-12-25, PrivateKeyEntry,
证书指纹 (SHA1): 7A:04:F7:BE:20:1B:D2:8E:A7:E8:8C:37:50:93:A1:A0:2F:6F:48:BE
wwwmwpingart01, 2018-12-26, PrivateKeyEntry,
证书指纹 (SHA1): FA:5A:3A:D8:6B:E6:06:DB:EF:6B:3D:C9:EF:8A:83:B9:D1:EB:41:BE

4.删除排在wwwmwpingart01前面的证书(mwpingart01、mwpingart02)：

$ keytool -delete -alias mwpingart01 -keystore /Users/lixiang/Mwp/Github/mwping/download/tomcat/apache-tomcat-9.0.14/conf/keystore/mwpingart.keystore
输入密钥库口令:
$ keytool -delete -alias mwpingart02 -keystore /Users/lixiang/Mwp/Github/mwping/download/tomcat/apache-tomcat-9.0.14/conf/keystore/mwpingart.keystore
输入密钥库口令:

5.tomcat重启

6.把证书放入App的res/raw目录，网络请求移除hostnameVerifier相关代码：

    SSLContext sslContext = createSSLContext(getResources()
            .openRawResource(R.raw.wwwmwpingart01), "wwwmwpingart01");
    URL url = new URL("https://www.mwping.art/test/hello");
    HttpsURLConnection urlConnection = (HttpsURLConnection) url.openConnection();
    urlConnection.setSSLSocketFactory(sslContext.getSocketFactory());
    InputStream in = urlConnection.getInputStream();
    streamToString(in);

简化自签署证书配置

Android提供了以配置文件的形式处理自签署证书的方法：https://developer.android.com/training/articles/security-config

1.manifest添加networkSecurityConfig：

<?xml version="1.0" encoding="utf-8"?>
<manifest ... >
    <application android:networkSecurityConfig="@xml/network_security_config"
                    ... >
        ...
    </application>
</manifest>

2.res/xml/network_security_config.xml文件如下：

<?xml version="1.0" encoding="utf-8"?>
<network-security-config>
    <domain-config>
        <domain includeSubdomains="true">mwping.art</domain>
        <trust-anchors>
            <certificates src="@raw/wwwmwpingart01"/>
        </trust-anchors>
    </domain-config>
</network-security-config>

3.简化网络请求代码，跟http请求一样了：

//    SSLContext sslContext = createSSLContext(getResources()
//            .openRawResource(R.raw.wwwmwpingart01), "wwwmwpingart01");
    URL url = new URL("https://www.mwping.art/test/hello");
    HttpsURLConnection urlConnection = (HttpsURLConnection) url.openConnection();
//    urlConnection.setSSLSocketFactory(sslContext.getSocketFactory());
    InputStream in = urlConnection.getInputStream();
    streamToString(in);

计算机技术实战

纸上得来终觉浅，绝知此事要躬行。
